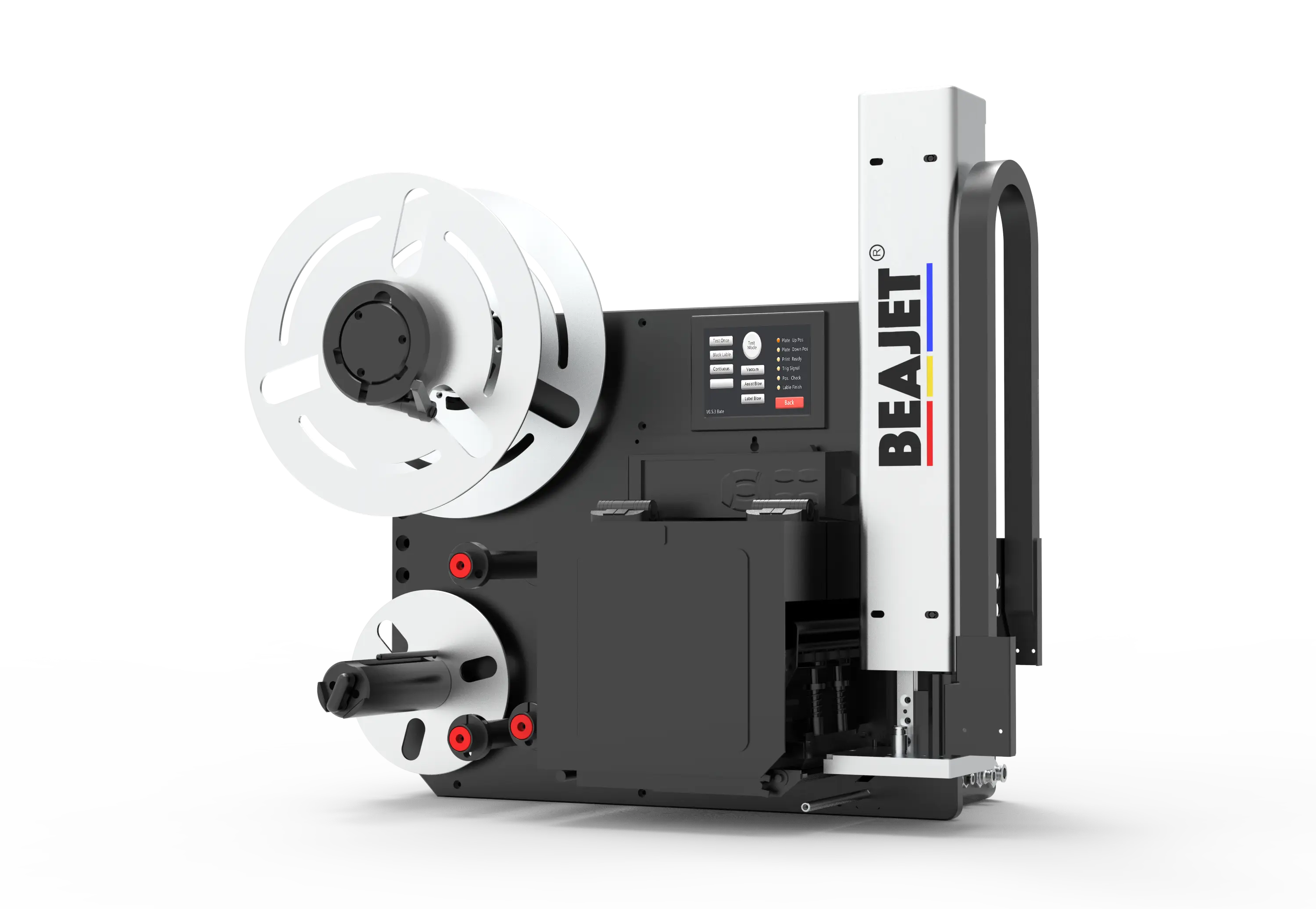

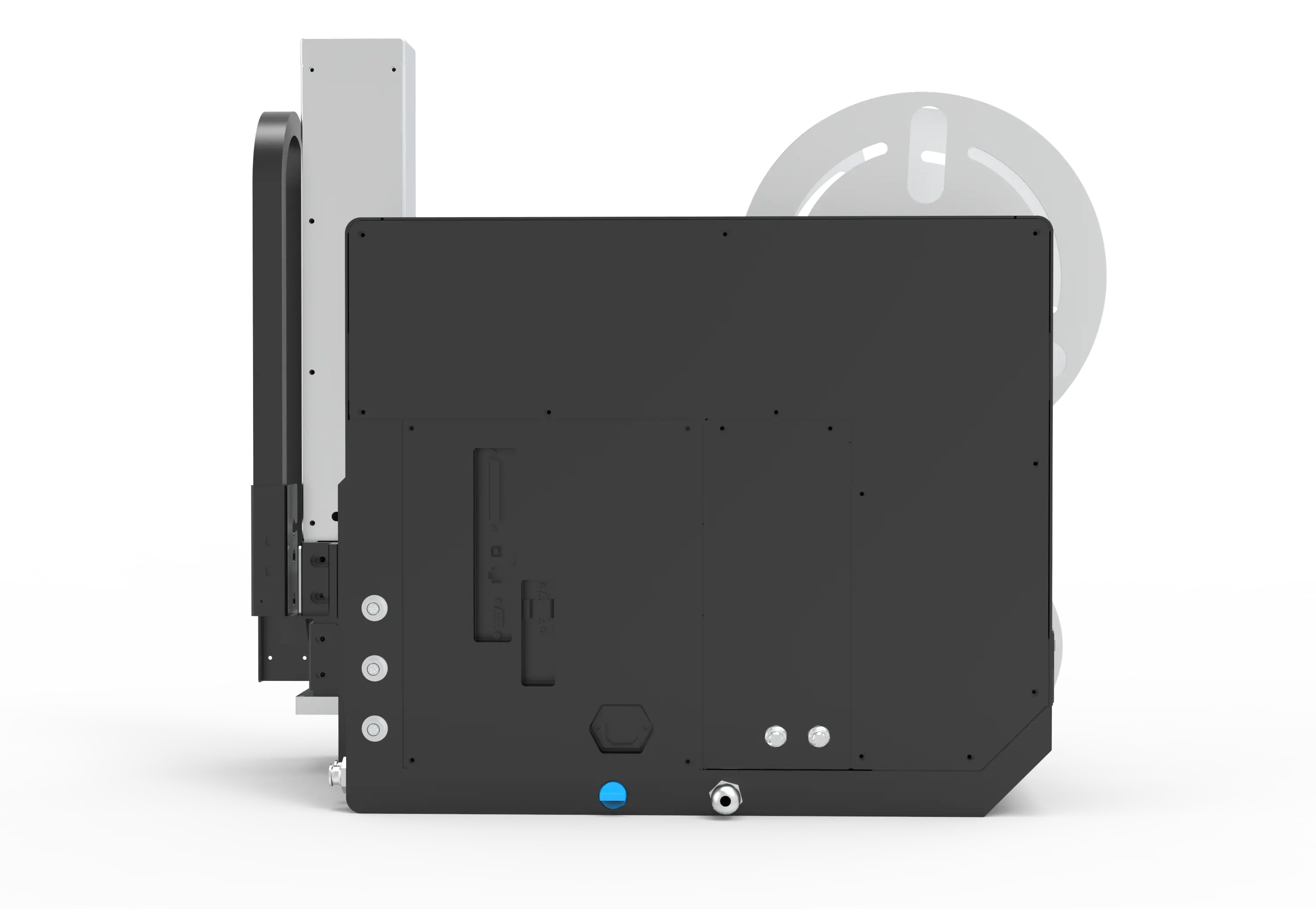

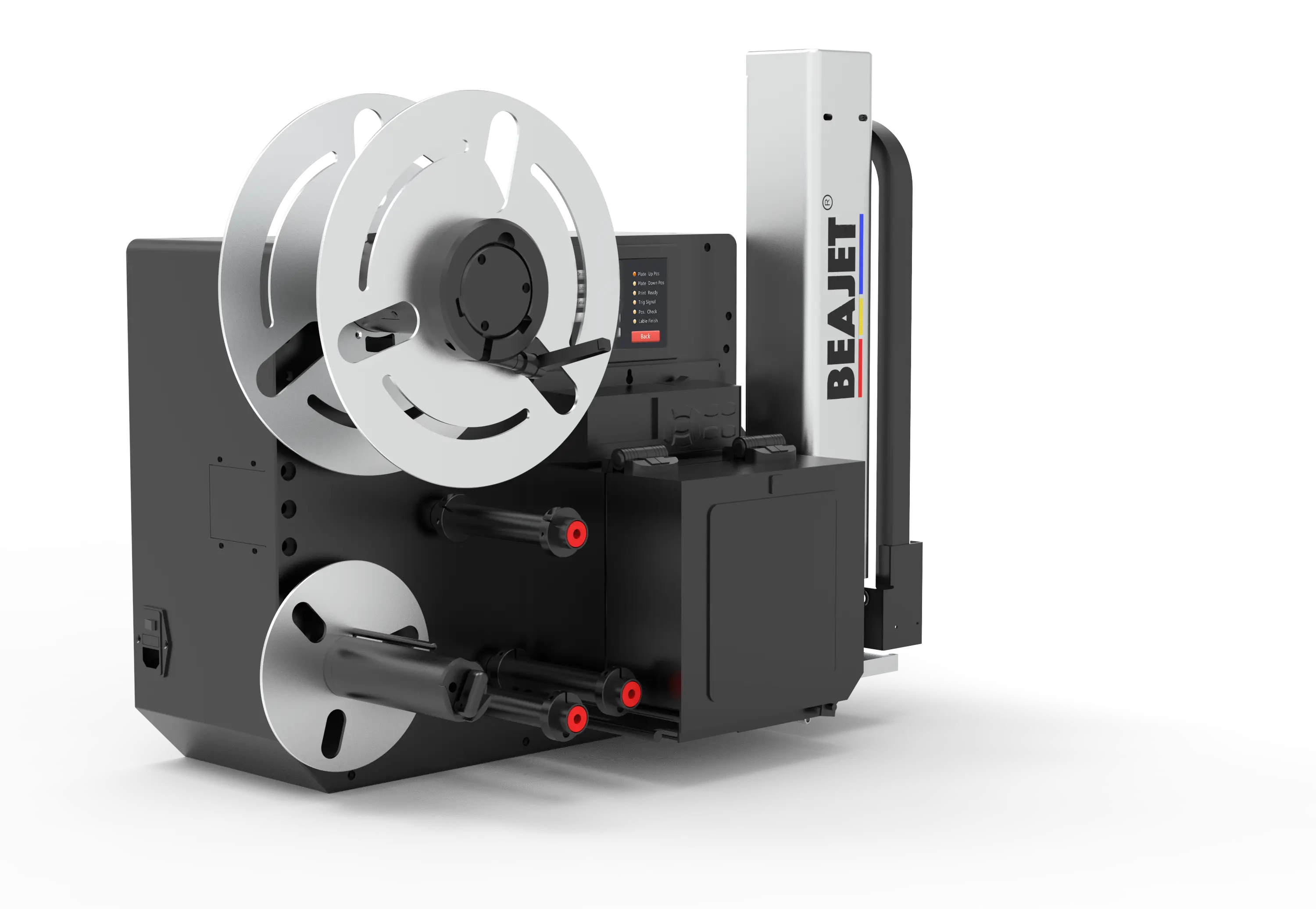

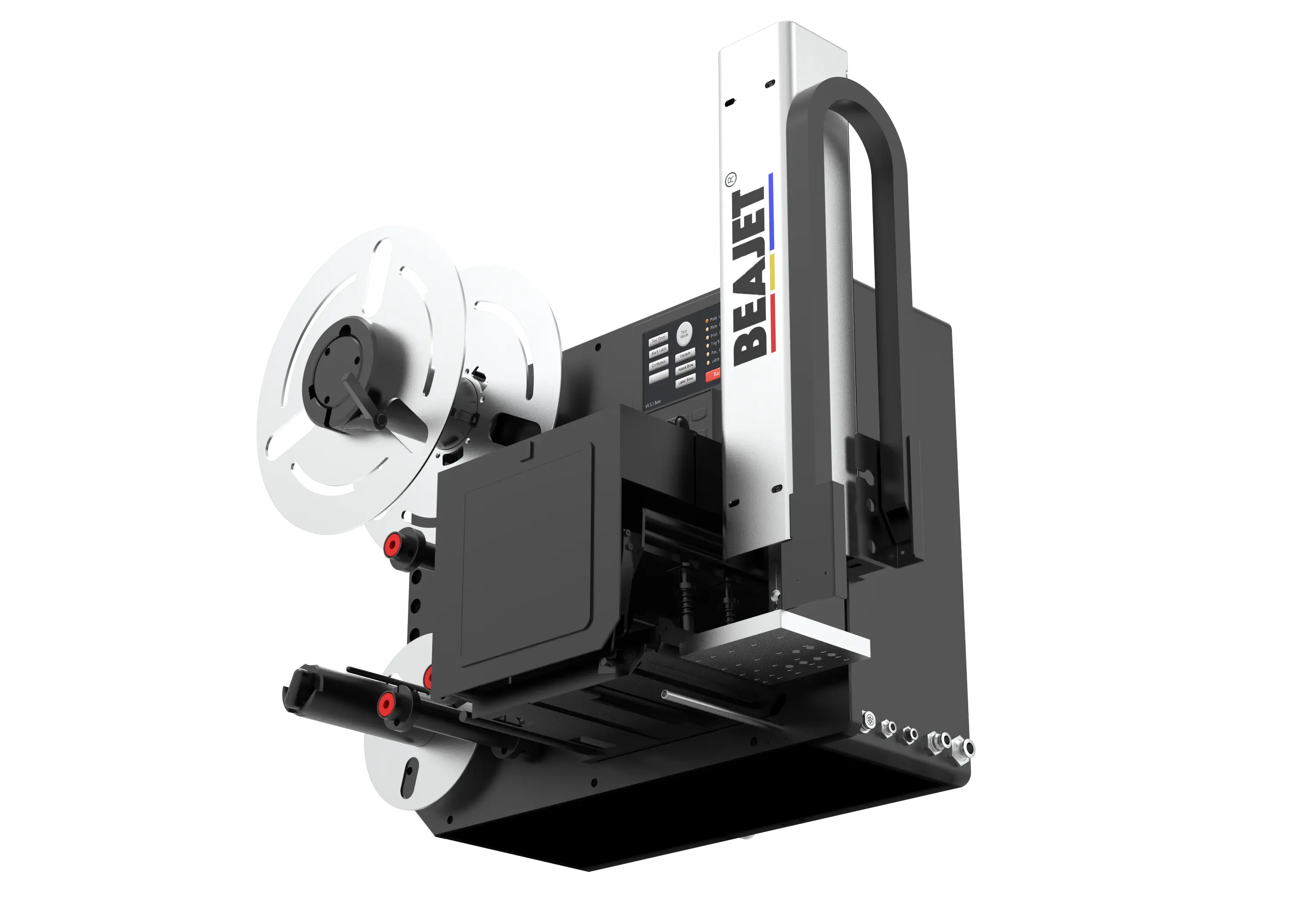

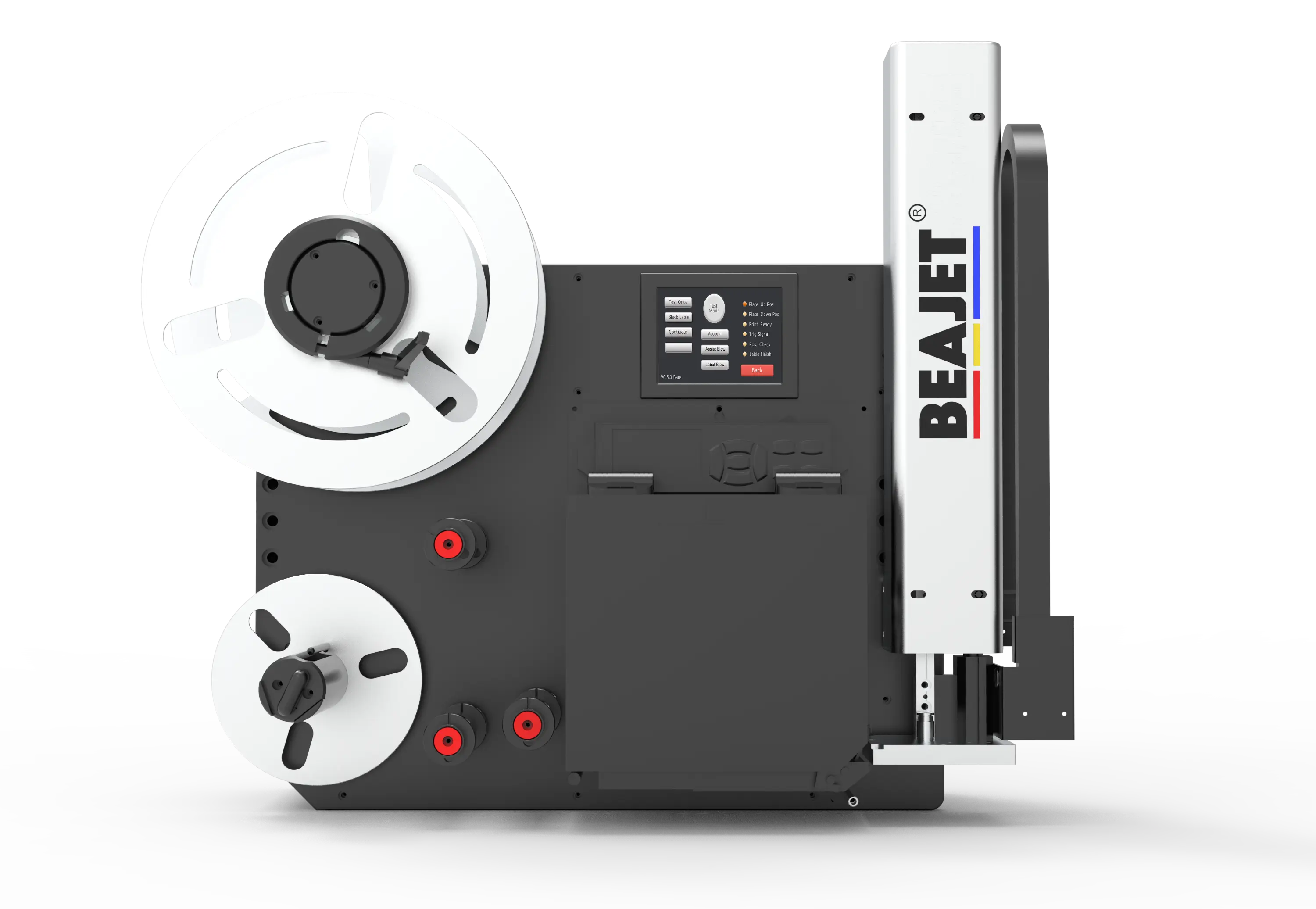

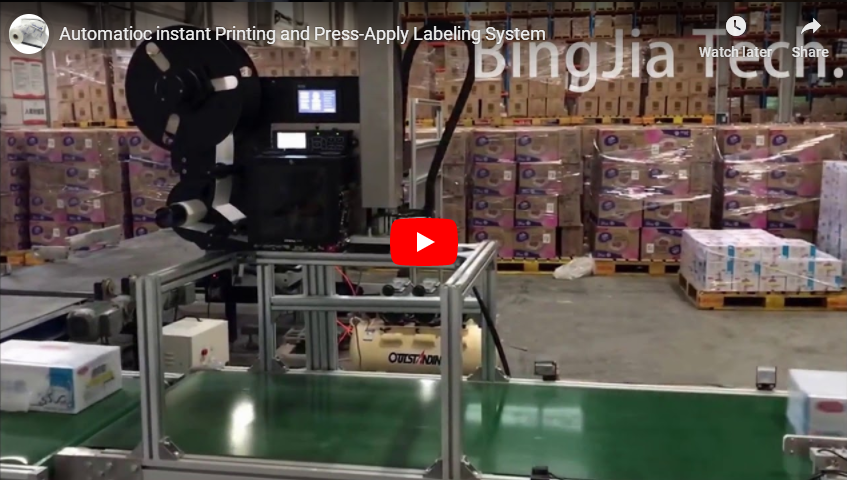

Real Time Print and Press-Apply Labeling System P540

Labeling method:

Pneumatic pressure labeling

Labeling arm model:

P540

Labeling speed (optional high-speed cylinder):

35 sheets / minute

Labeling stroke:

200mm, 320mm, 400mm, 600mm

Labeling precision:

±0.5mm

Product size (body + labeling arm):

740.5 * 443.5 * 667.5mm

(320mm stroke under the labeling arm)

Product weight:

55KG

Printer Brand:

ZEBRA, TSC

Print resolution:

203dpi, 300dpi, 600dpi

Printing label material:

Coated paper, thermal paper, PE composite film, etc.

Applicable label size:

W:13-1 68mm, H: 10-300mm

Label roll size:

Inner diameter 7 6mm, outer diameter 300mm

Working voltage:

100-220V

Working air pressure:

0.4-0.6Mpa

Print data transmission interface:

USB, Internet

Control interface:

2PIN RS485, 4PIN active interface, 9PIN IO point

Warranty:

1 year
